Explore how RAID structures revolutionize data storage, improve performance, and enhance data protection in modern computing environments.
Introduction to RAID
RAID, which stands for Redundant Array of Independent Disks, combines multiple disk drive components into a single logical unit to improve data redundancy and performance. Modern data storage solutions have embraced RAID structures, which offer enhanced reliability, increased storage capacity, and improved data access speeds.
Types of RAID Structures
RAID 0: Striping for Speed
RAID 0 improves performance by stripping data across multiple drives. This RAID structure divides data into smaller segments and writes them simultaneously across different disks, enabling faster read and write speeds. However, RAID 0 provides no data redundancy, making it vulnerable to disk failures.
RAID 1: Mirroring for Redundancy
RAID 1 creates an exact copy (mirror) of data on two or more drives. This RAID structure delivers excellent read performance and provides complete data redundancy. If a disk fails, the system can continue to operate using the mirrored copy, ensuring data availability and protection.

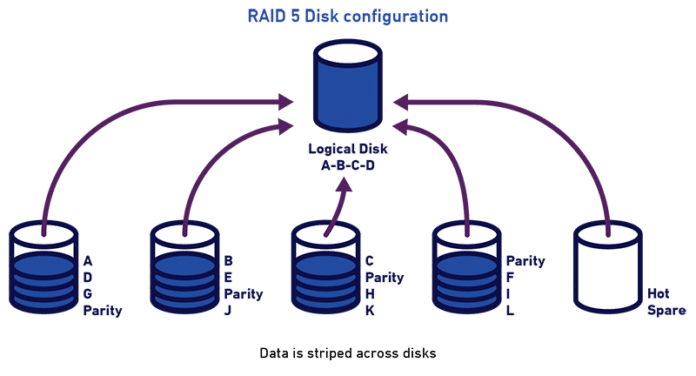

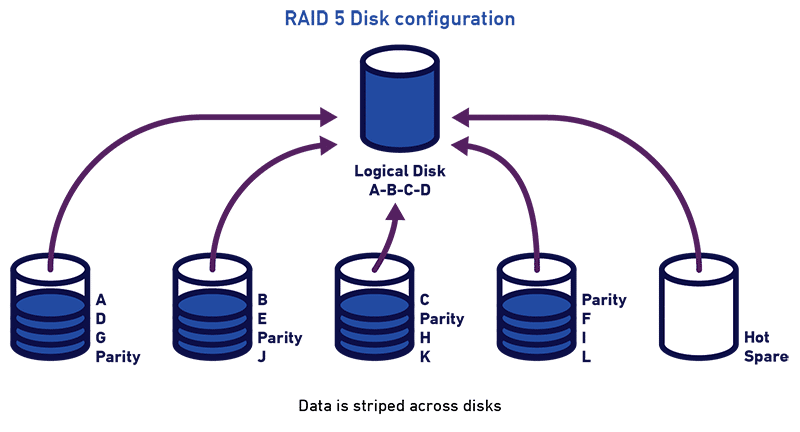

RAID 5: Balancing Performance and Redundancy
RAID 5 is a storage technology that combines good performance with data protection. It uses block-level striping with distributed parity, which enhances read performance and enables recovery from a single disk failure. RAID 5 needs a minimum of three drives, and many businesses commonly use it in their environments.
RAID 6: Enhanced Protection with Dual Parity
RAID 6 builds upon RAID 5 by implementing dual parity. This RAID structure can withstand the simultaneous failure of two drives, providing an extra layer of data protection. While it offers increased reliability, RAID 6 incurs a slight performance penalty due to the additional parity calculations.
RAID 10: Combining Mirroring and Striping
RAID 10, also known as RAID 1+0, combines the benefits of RAID 1 (mirroring) and RAID 0 (striping). This nested RAID structure offers both high performance and excellent data protection. Environments that require speed and reliability, such as database servers and virtualization hosts, often use RAID 10.
Benefits of RAID Structures
Improved Performance
RAID structures can significantly enhance data access speeds by distributing read and write operations across multiple drives. This parallelism allows for faster data processing and improves overall system performance.
Enhanced Data Protection
Many RAID levels offer built-in redundancy, protecting against data loss during disk failures. This redundancy ensures business continuity and minimizes downtime associated with hardware failures.
Increased Storage Capacity
RAID structures allow for the logical combination of multiple physical drives, effectively increasing the available storage capacity. This scalability mainly benefits organizations with growing data storage needs.
Cost-Effective Solution
While RAID requires multiple drives, it often provides a more cost-effective solution than investing in a single large-capacity drive. RAID structures offer a balance between performance, capacity, and cost.
Considerations When Implementing RAID
Choosing the Right RAID Level
Selecting the appropriate RAID level depends on specific requirements, such as performance needs, data protection priorities, and budget constraints. You should carefully evaluate these factors before implementing a RAID structure.
Hardware vs. Software RAID
You can implement RAID through dedicated hardware controllers or software solutions. Hardware RAID generally offers better performance but at a higher cost, while software RAID provides flexibility and is more budget-friendly.
Regular Maintenance and Monitoring
Regular maintenance and monitoring are essential to maintain the effectiveness of RAID structures. Proper RAID maintenance includes checking drive health, promptly replacing failed drives, and conducting periodic data integrity checks.
Embracing RAID Technology
RAID structures have revolutionized data storage and protection in modern computing environments. By offering improved performance, enhanced data protection, and increased storage capacity, RAID has become an indispensable technology for businesses and organizations of all sizes. As data grows in importance and volume, understanding and implementing the proper RAID structure will remain crucial for efficient and reliable data management.
